Scientists predict superelastic properties in a group of iron-based superconductors

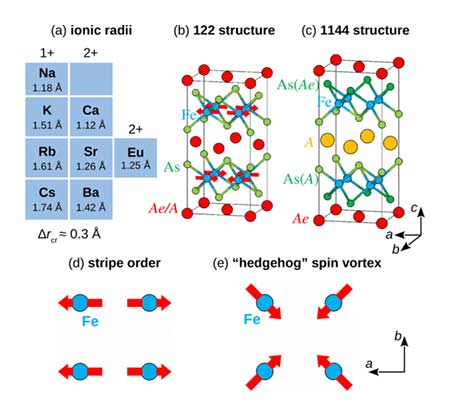

This figure shows (a) Cations of alkali (1+) and alkaline-earth (2+) elements, as well as divalent Eu, together with their ionic radii, and (b) The 122 and (c) 1144 structures of iron pnictides.  Possible Fe magnetic orders are shown in (d) stripe order and (e) “hedgehog” or spin-vortex order @ DOE / AMES

A collaboration between scientists at the U.S. Department of Energy's Ames Laboratory and the Institute for Theoretical Physics at Goethe University Frankfurt am Main has computationally predicted a number of unique properties in a group of iron-based superconductors, including room-temperature super-elasticity.

Ames Laboratory produced samples of one of these iron arsenide materials with calcium and potassium, CaKFe4As4, and experimentally discovered that when placed under pressure, the structure of the material collapsed noticeably.

"It's a large change in dimension for a non-rubber-like material, and we wanted to know how exactly that collapsed state was occurring," said Paul Canfield, a senior scientist at Ames Laboratory and a Distinguished Professor and the Robert Allen Wright Professor of Physics and Astronomy at Iowa State University.

Through computational pressure simulations, the researchers learned that the material collapsed in stages--termed "half-collapsed tetragonal phases"--with the atomic structure near the calcium layers in the materials collapsing first, followed by the potassium layer collapsing at higher pressures. The simulations also predicted these behaviors could be found in similar materials that are as-yet untested experimentally.

"Not only does this study have implications for properties of magnetism and superconductivity, it may have much wider application in room-temperature elasticity," said Canfield.

Canfield collaborated with Roser Valenti at the Institute for Theoretical Physics at Goethe University Frankfurt am Main, who served as the host faculty member for Canfield's Humboldt Award in 2014.

It has been a delight as an experimentalist to be able to access this theoretical group's ever-increasing computational skills to model and predict properties," said Canfield.

Trends in pressure-induced layer-selective half-collapsed tetragonal phases in the iron-based superconductor family AeAFe4As4 Vladislav Borisov, Paul C. Canfield, and Roser Valentí Phys. Rev. B 98, 064104 DOI:

Contact information:

Prof. Paul Canfield Iowa State University's Dept. of Physics & Astronomy Tel: 515-294-6270 Web:

U.S. Department of Energy's Ames Laboratory
