Designing next-generation metals, one atom at a time


Pacific Northwest National Laboratory researchers are visualizing how shear forces rearrange metal atoms in ways that translate to improved characteristics—like greater strength, ductility, and conductivity—to inform the custom design of next-generation metals with broad applications from batteries to vehicles. @ Shannon Colson | Pacific Northwest National Laboratory

How can studying metals manufacturing lead to longer-lasting batteries and lighter vehicles? It all comes down to physics.


Researchers at Pacific Northwest National Laboratory (PNNL) are investigating the effects of physical forces on metals by taking a direct look at atomic-level changes in metals undergoing shear deformation.


The forces applied during shear deformation to change a metal’s shape also rearrange its atoms, but not in the same way for every metal or alloy. Atomic arrangement can affect metal properties like strength, formability, and conductivity—so better understanding how atoms move during shear is a key part of ongoing efforts to custom design next-generation metals with specific properties from the atom up.


These visualizations form the foundation for understanding how shear deformation creates the improved characteristics observed in metals produced using Shear Assisted Processing and Extrusion (ShAPETM), a PNNL innovation in metals manufacturing. During ShAPETM manufacturing, metals are processed using shear forces to produce high-performance metal alloys for use in vehicles and other applications.


“If we understand what happens to metals on an atomic level during shear deformation, we can use that knowledge to improve countless other applications where metals experience those same forces—from improving battery life to designing metals with specific properties, like lighter, stronger alloys for more efficient vehicles,” said Chongmin Wang, PNNL Laboratory fellow and leader of the research team studying the forces of induced shear deformation.

PNNL researchers visualized how atoms are rearranged during shear deformation by taking an extreme close-up look at a gold nano-crystal. In this video, each row of atoms is moved in a specific way during shear deformation, generating specific structures that determine the material’s properties. @ Sara Levine | Pacific Northwest National Laboratory

Atomic mysteries

Physical forces are universal. The forces that are purposefully applied during metals manufacturing to create alloys are the same forces that can damage structures inside batteries to cause eventual failure. Researchers also know that shear deformation can fundamentally alter the microstructure of metals in ways that can actually improve the material—making metals stronger, lighter, and more flexible. But how that happens is still a mystery.


“If you were to snap a picture of a track runner at the start and end of their run, you might think they didn’t move at all,” explained Arun Devaraj, PNNL materials scientist. “But if you film the runner while they are going around the track, you’ll know just how far they traveled. It’s the same here. If we understand exactly what happens to metals on the atomic level during shear deformation, we could apply that knowledge strategically to design materials with specific properties.”


The gold standard

To watch how shear deformation rearranges metal atoms, researchers used a specialized probe inside a transmission electron microscope at PNNL, which is among only a handful of laboratories with this capability in the world. The research team used the microscope to record how individual rows of atoms within metals moved during shear deformation. They started by looking at gold—the standard because it is easiest to visualize on an atomic level.


When researchers watched gold undergoing shear, they saw that crystals of gold were divided into smaller grains. They noticed that natural defects in the arrangement of gold atoms changed how shear deformation moved the atoms. This is useful information because defects are common in metals during deformation, but don’t behave the same in all metals—which can directly affect metal properties.


“The defects in crystal, grain size and microstructure in a metal can affect the metal’s characteristics, like strength and toughness. That’s why it’s important to understand how shear deformation moves metal atoms around and affects the overall microstructure of the metal,” said Shuang Li, PNNL postdoc and the first author on three studies sharing these results.

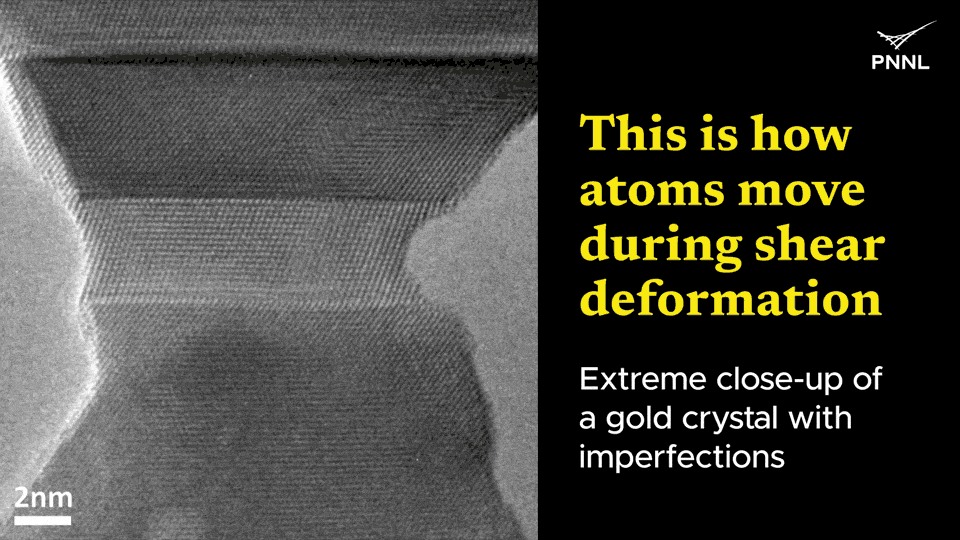

PNNL researchers also took a closer look at how atoms in an imperfect gold crystal—one with existing defects in its atomic structure—were rearranged during shear deformation. The existing defects in the atomic structure altered how the atoms moved, resulting in different structures that could yield different material properties. @ Sara Levine | Pacific Northwest National Laboratory

Next, the research team looked at copper. They observed how shear deformation creates nanotwins—structural features that make metals stronger. Observing an alloy of copper and niobium, they found that shear deformation affects atoms differently inside the copper and niobium phases of the metal mixture. This is a valuable insight that can inform how to manufacture alloys with specific properties using shear deformation.


The information gained from studying how these forces affect metals during controlled manufacturing processes can be directly translated and applied wherever metal experiences the same physical forces. For example, the atomic-level visualization capability at PNNL is also useful for understanding how materials used in extreme conditions (e.g., nuclear reactors) or clean energy applications (e.g., hydrogen transmission lines and storage tanks) will respond to external stresses. Longer lasting batteries, lighter alloys for more efficient vehicles, and custom design of next-generation metals with improved strength and conductivity could all be possible by better understanding the atomic physics of metals manufacturing. References In-situ TEM observation of shear induced microstructure evolution in Cu-Nb alloy

Shuang Li, Matthew Olszta, Lei Li, Bharat Gwalani, Ayoub Soulami, Cynthia A. Powell, Suveen Mathaudhu, Arun Devaraj, Chongmin Wang

Nanotwin assisted reversible formation of low angle grain boundary upon reciprocating shear load

Shuang Li, Nanjun Chen, Aashish Rohatgi, Yulan Li, Cynthia A. Powell, Suveen Mathaudhu, Arun Devaraj, Shenyang Hu, Chongmin Wang

In-situ observation of deformation twin associated sub-grain boundary formation in copper single crystal under bending

Shuang Li, Lei Li, Ayoub Soulami, Cynthia A. Powell, Suveen Mathaudhu, Arun Devaraj & Chongmin Wang
