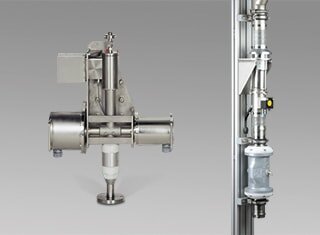

Sampler Collection of representative analysis samples with a static sampler at high mass flow rates in the process The sampling with MIXER is used to collect homogeneous and representative analysis samples from process stages with high mass flow rates of dry, relatively narrowly distributed bulk solids, e.g. during the grinding of cement or anode coke. With the aid of two-stage sampling, it is possible to realise extreme division ratios that extract suitable analysis samples in the range of a few grams from product mass flow rates of over one hundred tonnes per hour for real-time laser granulometry with MYTOS. Sample collection at mass flow rates of up to 400 kg/h are realized in a single step directly with MIXER.
The ultrasonic extinction sensor OPUS analyses both the particle size distribution and the concentration of disperse phases in suspensions and emulsions in the range from less than 0.1 micron to 3,000 microns in real time. OPUS is designed as a stable process probe for high temperatures and pressures and can withstand chemical and mechanical stresses. In addition to a dustproof and splashproof IP65 version, OPUS is also available as an ATEX probe. The connection to various processes is via a selection of process adapters. The common communication protocols are available for the exchange of data with your process control system.
CATEGORY
The lab instrument NIMBUS analyses manual samples from 300 ml to 1,000 ml in an easy and comfortable way. The compact system uses the OPUS-technology and consists of identical core components. Therefore the same measuring range from below 0.1 µm to 3,000 µm applies to the instrument. Lab applications are found e.g., in petroleum engineering during the analysis of oil sands or in anode production for aluminium smelting (characterisation of anode grade coke in liquid pitch).
CATEGORY
Wet dosing unit LIQXI is the recommended solution for feeding finely dispersed suspensions and emulsions from 1 µm to 500 µm for true-to-method analysis with QICPIC and LIXELL. It uses micro-cuvettes with particularly small gap widths of 30 µm to 1 mm, which provide a film of fluid in the measuring zone that is optimised for image analysis of fine particles.
CATEGORY
Our delivery standard is the compact and quiet range of compressors in the LFx series from Atlas Copco, which are designed for maintenance-free and reliable continuous operation. The piston compressors are oil-free and equipped with an additional filter and drying unit. With a capacity matched to the relevant application, they reliably cover the demand for compressed air in the required quality.
