New access to the interior of electronic components

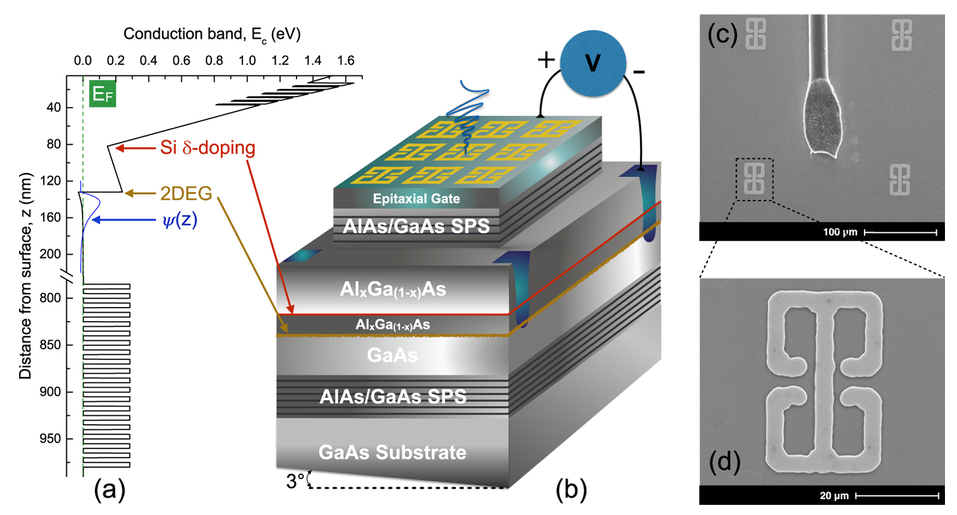

(a) Conduction band edge, Ec, of our device when a certain bias is applied at the gate such that the ground state is below the Fermi energy. The ground wavefunction is also plotted within the well. (b) Schematic layer sequence of the device and the corresponding electric field direction of the incident infrared radiation, which couples to the resonator. The bottom surface of the device is wedged at an angle of 3° in order to avoid the Fabry Pérot fringes in transmission measurements. SEM micrograph showing (c) metamaterials and wire bonding, (d) metamaterial unit cell.

Electronic density and thickness oscillations provide new access to the interior of electronic components
Potential application: sensors for chemical substances

An interdisciplinary team at the Ruhr-Universität Bochum has found a way of accessing the interior of transistors. The researchers have manipulated the electron gas contained within by applying resonators to generate rhythmic oscillation in the terahertz range inside. They shared their findings in the magazine “Scientific Reports”.

Transistors can be manipulated not only with voltages

Used for switching and amplifying, transistors are fundamental elements of modern electronics. By applying a specific voltage externally to a transistor, an electric current is controlled inside, which, in turn, generates a new voltage. Compared with the externally applied voltage, the new voltage may be amplified, may oscillate or be logically connected to it. In order to interact with their surroundings via electric current and voltage, transistors contain ultra-thin electron layers, so-called 2D electron gases. The RUB team demonstrated that these gases can be controlled not only via DC and radio-frequency voltages.

Electron gas can be oscillated like jelly

“A 2D electron gas is like jelly,” explains Prof Dr Andreas Wieck from the Chair for Applied Solid State Physics. “If pressure is electrically applied to the gas from above with a characteristic frequency, thickness and density oscillations are generated.” Accordingly, the gas can be manipulated via electric forces, which oscillates much more rapidly than any radio or microwave frequency. As it has a thickness of just about ten nanometres, the oscillations follow the laws of quantum mechanics. This means: all occurring oscillations have a specific frequency, namely in the terahertz range, i.e. in the range of 1012 Hertz. “Pressure to the electron gas must be applied in that rapid change,” elaborates Wieck. Andreas Wieck, Dr Shovon Pal, Dr Nathan Jukam and other colleagues from the workgroup Terahertz Spectroscopy and Technology as well as from the Chair of Electronic Materials and Nanoelectronics have found a way to trigger the required oscillations. Thus, a new method of accessing the interior of a transistor has been created.

Resonators generate thickness oscillations

One hundred nanometres above the electron gas, the RUB researchers evaporated an array of identical metallic resonators which can oscillate with the required fixed frequency. The electron gas was embedded in a semiconductor and could be modified via external DC voltage, namely it could be made a bit thicker or thinner. The thickness determines the frequency which makes the gas oscillate optimally. Deploying external voltage, the researchers were able to fine-tune the electron gas to the resonators, i.e. adjust the gas so that the alternating electric pressure of the resonators excites it optimally to oscillate in the terahertz range.

Sensors for chemical and environmental technology

This method could be of interest for sensors in chemical and environmental applications, as the researchers suggest. This is because molecule oscillations typically happen in the terahertz range. With modified transistors, such oscillations can be recorded and sensors can be developed that react to the frequencies of certain gases or liquids.
