Capturing Molecular Motion with Relativistic Electrons

The world’s fastest images of nitrogen molecules rotating in a gas were captured using electron diffraction.

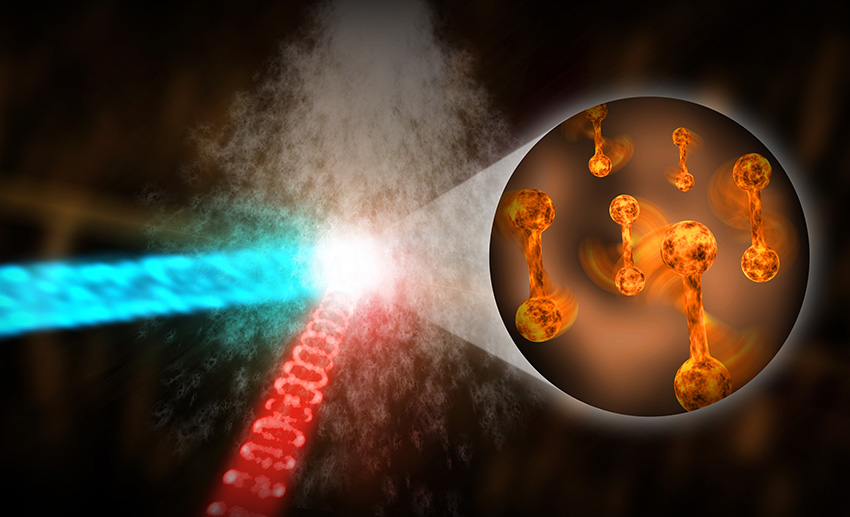

Nitrogen molecules were aligned with a laser pulse, and the subsequent motion of the molecules was imaged with atomic resolution using femtosecond electron pulses.

This gas phase electron diffraction experiment, demonstrating 100-femtosecond resolution, breaks a longstanding barrier to resolving molecular geometry changes on the timescale of atomic motion. This new instrument will be used to image the ultrafast evolution of chemical reactions with atomic resolution.

An important step in understanding chemical reactivity is determining how molecular structure changes during a reaction.

The ability to image ultrafast structural changes on their natural time scale has been an elusive goal in the chemical sciences.

To address this challenge, researchers at SLAC National Accelerator Laboratory and the University of Nebraska-Lincoln produced and used high-quality femtosecond pulses of electrons accelerated to relativistic energy in a gas-phase electron diffraction experiment.

The resulting diffraction images captured the rotational wavepacket dynamics of impulsively laser-aligned nitrogen molecules, demonstrating 100 femtosecond temporal resolution and sub-Angstrom spatial resolution, making it possible to resolve the position of the atoms within the molecule.

The diffraction patterns reveal the angular distribution of the molecules, which changes from prolate (aligned) to oblate (anti-aligned) in just 300 fs. The results demonstrate a significant and promising step towards making atomically resolved movies of molecular reactions.


J. Yang, et al. “Diffractive imaging of a rotational wavepacket in nitrogen molecules with femtosecond megaelectronvolt electron pulses.” Nat. Comm., 7, 11232 (2016).

DOI: 10.1038/ncomms11232

SLAC National Accelerator Laboratory

#Chemistry #Electrons
