Novel Strategy to Construct Precious Metal Nanoparticle Arrays Directly on Hydrogels

Typical SEM images of the hydrogel film@gold nanoparticle arrays. @ XING Changchang

Ordered arrays of tightly expelled gold nanoparticles loaded on hydrogels has received much attention for the surface plasmon resonance effect. However, the method of loading construction is to synthesize the noble metal nano-array on the solid substrate and then transfer to the hydrogel to form the composite film structure, which would cause defects in the transfer process.

Researchers led by Prof. LI Yue from the Hefei Institutes of Physical Science (HFIPS) of the Chinese Academy of Sciences have offered a simple and efficient strategy recently to construct precious metal nanoparticle arrays directly on hydrogels. Related results were published on Advanced Materials Interfaces.

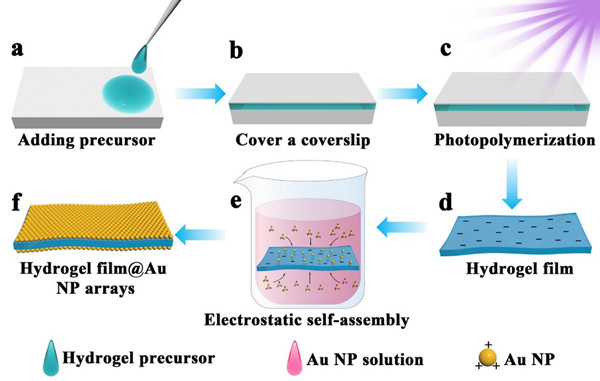

Schematic illustration of the preparation of the hydrogel film@gold nanoparticle arrays by hydrogel shrinkage-assisted electrostatic self-assembly. @ XING Changchang

This facile self-assembly strategy is based on electrostatic adsorption and hydrogel shrinkage effect. It not only reveals the self-assembly mechanism driven by the principle of minimum free energy, but also solves the difficulty of non-close arrangement random assembly caused by the secondary electrostatic repulsion of adsorbed particles in the traditional electrostatic self-assembly technology.

Besides, it realizes the batch preparation of ordered arrays of dense gold nanoparticles loaded with large area hydrogel.

In this research, the ordered array of dense gold nanoparticles loaded on hydrogel films, which based on hydrogel shrinkage-assisted electrostatic self-assembly, was constructed by uniform gold nanospheres in a close arrangement of hexagons. The large area was ordered and uniform, and there were only a small number of vacancy defects caused by the absence of gold nanoparticles. This indicated that large area ordered and closely arranged gold nanoparticles arrays were successfully prepared on both sides of the hydrogel film by the combination of electrostatic self-assembly and hydrogel film shrinkage.

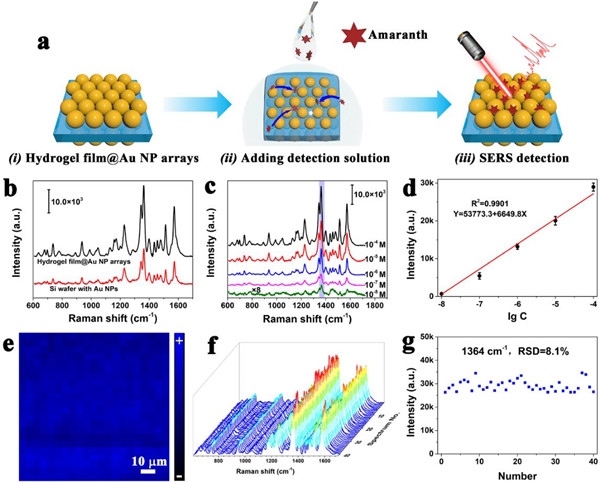

High SERS performance of the hydrogel film@gold NP arrays with active gaps between neighboring nanoparticles. @ XING Changchang

Compared with gold nano-array on silicon substrate, the dense array shows stronger surface-enhanced Raman scattering (SERS) activity effect because of the controllable distance between the active sites and the dynamic structure of the array. The hydrogel film @ dense gold nanoparticle array substrate also has excellent SERS signal reproducibility.

This study proves that the hydrogel film loaded densely packed gold nanoparticles array is an excellent dynamic and controllable SERS substrate, which can be used for the practical detection of SERS technology.

In addition, this method helps to ensure the order and integrity of the array, which provides a new idea for the construction of high-performance devices based on plasma nanoparticle array and hydrogel composites.

Reference Hydrogel Film@Au Nanoparticle Arrays Based on Self-Assembly Co-Assisted by Electrostatic Attraction and Hydrogel-Shrinkage for SERS Detection with Active Gaps

Changchang Xing, Shichuan Zhong, Dilong Liu, Tao Zhang, An Cao, Pan Zeng, Dandan Men, Cuncheng Li, Weiping Cai, Yue Li
