3D human epidermal equivalent created using math

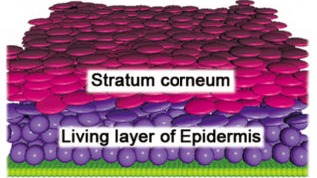

3D human epidermal equivalent created using math @ Kumamoto J. et al., Scientific Reports, December 20, 2018

The epidermal equivalent made from human epidermal cells now has excellent functionality as a barrier, according to results of the team's experiments.

Experimental models of human epidermises are important research tools not only for basic studies on epidermal functions, skin diseases, and skin aging, but also for the development of drugs, cosmetics, and other products. Despite this, previous epidermal models have not sufficiently imitated a real human epidermis. For example, the use of epidermal cells in previous methods yielded epidermises which were too thin.

In the present study published in Scientific Reports, a research team including Hokkaido University's Professor Masaharu Nagayama, research scholar Junichi Kumamoto and Shiseido Global Innovation Center's Mituhiro Denda developed a mathematical model on epidermal homeostasis by incorporating various cellular processes, epidermal cell differentiations, and characteristics of epidermal stem cells, to construct an epidermis.

The epidermal-equivalent models generated from epidermal cells with (right) or without (left) a basal layer made of polyester mesh. Living layers are indicated by blue arrows and stratum corneum by red arrows. Asterisks indicate cross sections of polyester fibers. Scale bars = 50 μm @ Kumamoto J. et al., Scientific Reports, December 20, 2018

Using the model, the team conducted computer simulations and discovered that the thickness and structure of epidermises were influenced by the spatial distribution of epidermal stem cells and the structure of the basal layer on which they were seeded. The researchers hypothesized that, based on computer simulations, putting a texture, specifically sinusoidal undulations, on the bottom of the epidermal cells would yield thick epidermal equivalents.

The researchers used a culturing vessel which is available on the market and placed the basal layer made of polyester mesh with varying thread thicknesses and lattice densities to make its surface uneven. Human epidermal cells, or keratinocytes, were seeded on this layer. The cells were cultured for 12 days using a commercially available cell culture medium and an ordinary culture method to produce an epidermal equivalent.

The thickness, barrier functionality, and the number and distribution of proliferated cells of the epidermal equivalent were then studied. The results show that the epidermal model that has contact with the polyester mesh in the basal layer with an uneven surface yields a very thick epidermal model showing normal human epidermal cell characteristics. The measurement of trans-epidermal water loss (TEWL) indicated that the model has excellent barrier function. The TEWL was twice as high than that of those cultured without the use of the polyester mesh substrate.

"This thick, three-dimensional epidermal equivalent will be useful in unraveling the mechanisms behind skin diseases, including xeroderma that accompanies aging, and testing the effectiveness of transdermally administered medicines and cosmetics," says Mituhiro Denda. "The results also support the idea that mathematical modeling of complex biological processes can have practical value in the fields of medicine and life science," Masaharu Nagayama added.

Mathematical-model-guided development of full-thickness epidermal equivalent.

Junichi Kumamoto, Shinobu Nakanishi, Mio Makita, Masaaki Uesaka, Yusuke Yasugahira, Yasuaki Kobayashi, Masaharu Nagayama, Sumiko Denda, Mitsuhiro Denda.

Scientific Reports, 2018; 8 (1)

Contact information:

Professor Masaharu Nagayama

Research Institute for Electronic Science, Hokkaido University

Mitsuhiro Denda

Global Innovation Center, Shiseido Japan Co., Ltd.
