Dynamic gating process observed at sub-2 nm speed in nanochannels

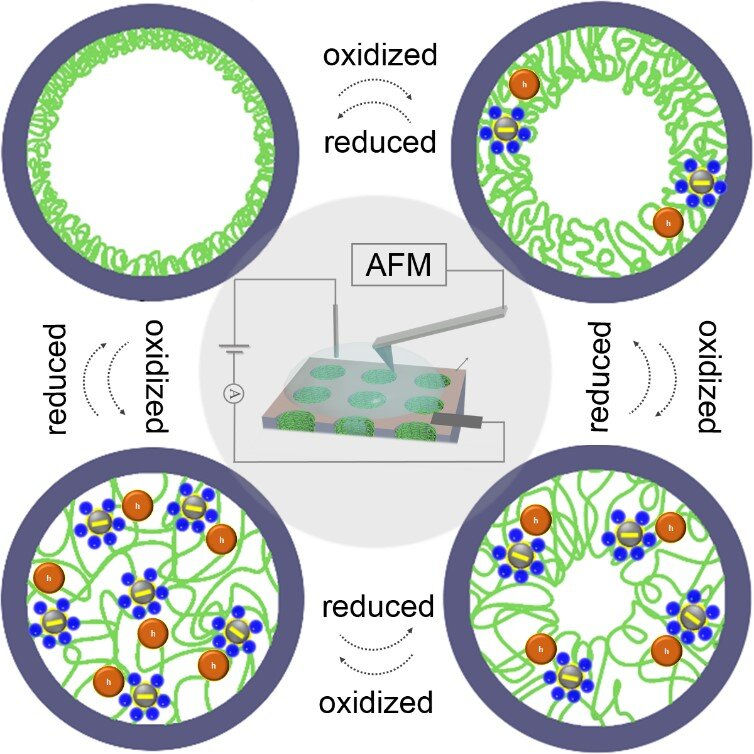

Observing the successive polymer chain variation at nanoscale (ca. 10 nm) by the atomic force microscope topography in situ. This integrated nanoporous membrane could modulate dynamic electric gating process at sub-2 nm speed. @ TIPC

In a recent study published in Matter, Chinese researchers observed the dynamic gating process at sub-2 nm speed in nanochannels.


Dr. Zhou Yahong at Prof. Jiang Lei's team of the Technical Institute of Physics and Chemistry of the Chinese Academy of Sciences, together with researchers from the South China University of Technology and the Peking University School and Hospital of Stomatology, has developed a novel nanoporous gating system that can precisely control and observe dynamic gating processes.


In the natural world, cells usually modulate mass transport by fine-tuning the location of nanochannels so they are positioned precisely at the membrane. Inspired by the cell performance, numerous artificial nanochannels with gating properties have been constructed.


Before this study, researchers focused on the terminal "open" and "closed" states in response to changes of environments. Prof. JIANG Lei's group has completed a series of fundamental studies about smart gating nanoporous membrane.


Now the researchers are curious about the dynamic gating process. However, achieving the exquisitely tuning radius of the nanochannels still remains a challenge, especially at a quantitatively nanoscale speed.


In this study, they integrated the conducting polymer polypyrrole into the nanochannels. They observed that the degree of contraction or swelling of the polymer film is associated with the amount of charging electrons and holes.


Therefore, the controlled dynamic gating process through the conducting polymer nanoporous membranes was realized, the radius of which could modulate 1.5 nm each time with minimum value.


Furthermore, the researchers directly observed successive polymer chain variations at nanoscale (ca. 10 nm) by atomic force microscopy topography in situ. This was highly praised by the peer reviewers as well.


"Small operation voltage (-0.5 to 0.8 volts) combined with 83% thickness change makes this membrane promising for smart nanorobot and bioactuator applications. And controlling the radius change at sub-2 nm gives some inspiration towards the advanced separation membrane on nanoscale in the future," said Dr. Zhou. Reference Dynamically modulated gating process of nanoporous membrane at sub-2-nm speed

Yahong Zhou, Junran Hao, Jiajia Zhou, Jingwen Liao, Yan Wei, Xiachao Chen, Chengyun Ning, Xuliang Deng, Lei Jiang

https://www.cell.com/matter/fulltext/S2590-2385(21)00617-2?_returnURL=https%3A%2F%2Flinkinghub.elsevier.com%2Fretrieve%2Fpii%2FS2590238521006172%3Fshowall%3Dtrue

Chinese Academy of Sciences
